  • General Purpose Ovens

    General Purpose Ovens

    50 litre Oven
    MINO/50
    50 litre Oven with Digital Controls
    OV/50/DIG

    The GENLAB General Purpose Ovens offer a range of highly efficient, reliable, cost effective units to suit most drying, warming and general laboratory applications.

    Specifications

    • 10 sizes 6 to 200 litres
    • Temperature range: 40 to 250ºC
    • Fluctuation +/- 0.75ºC
    • Easy clean powder coated body
    • Aluminium coated mild steel chamber
    • Direct reading thermostat
    • Safety overheat thermostat to DIN 12-880, Class 3.1
    • Full two year warranty
    • C.E. compliant

    Options

    • Stainless steel chamber
    • Fan circulation (30 litre +)
    • Microprocessor digital controller with dual display of set point and actual temperature
    • Other accessories available on request

    Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option. Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a glass immersion thermometer. The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.

    Heating

    Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units. The 200 litre units have fan circulation as standard.

    Controls

    The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.

    Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.

    Specifications

    Vertical Style
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Weight
    (kg)
    without fan
    with fan
    MINO/6
    6
    15 x 23 x 19
    41 x 35 x 33
    N/A
    1
    1
    7
    MINO/18
    18
    26 x 26 x 27
    52 x 38 x 41
    N/A
    2
    2
    14
    MINO/30
    30
    24 x 36 x 35
    50 x 48 x 49
    50 x 48 x 62
    2
    2
    20
    MINO/40
    40
    32 x 36 x 35
    58 x 48 x 49
    58 x 48 x 62
    2
    3
    23
    MINO/50
    50
    33 x 49 x 33
    59 x 61 x 47
    59 x 61 x 59
    2
    3
    26
    MINO/75
    75
    33 x 49 x 45
    59 x 61 x 60
    59 x 61 x 72
    2
    3
    34

    Horizontal Style
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Weight
    (kg)
    without fan
    with fan
    OV/50
    50
    42 x 41 x 35
    45 x 37 x 34
    57 x 73 x 47
    2
    3
    31
    OV/75
    75
    42 x 53 x 35
    45 x 49 x 34
    57 x 85 x 47
    2
    3
    39
    OV/100
    100
    42 x 53 x 46
    45 x 49 x 46
    57 x 85 x 59
    3
    4
    48
    OV/125
    125
    52 x 53 x 46
    55 x 49 x 46
    68 x 85 x 59
    3
    5
    57
    OV/150
    150
    52 x 53 x 54
    55 x 49 x 54
    68 x 85 x 66
    3
    5
    66
    OV/200/F
    200
    N/A
    75 x 49 x 54
    87 x 85 x 66
    4
    7
    85

    Ordering

    All units have CLAD interior with thermostatic control as standard. Where options are required simply add the option code to the original reference. i.e MINO/75 with optional stainless steel interior and optional digital controller becomes MINO/75/SS/DIG

    Option codes

    Stainless steel / SS
    Fan circulation / F
    Digital control system / DIG

  • General Purpose...

    General Purpose Lab Ovens & Laboratory Incubators

    50 litre Laboratory Incubator with Digital Control
    INC/50/DIG
    75 litre Laboratory Incubator
    MINI/75

    The GENLAB General Purpose & Laboratory Incubators offer a range of highly efficient, reliable, cost effective units to suit most biological analysis, research and general laboratory applications.

    Specifications

    • 10 sizes 6 to 200 litres
    • Temperature range:
      ambient +5 to 70ºC without fan
      ambient +5 to 70ºC with double door
      ambient +5 to 70ºC with window
      ambient +8 if fan fitted
    • Fluctuation +/- 0.25ºC @ 37ºC
    • Easy clean powder coated body
    • Aluminium coated mild steel chamber
    • Direct reading thermostat
    • Safety overheat thermostat to DIN 12-880 class 3.1
    • Full two year warranty
    • C.E. compliant

    Options

    • Stainless steel chamber
    • Fan circulation (30 litre +)
    • Alternative door with integral viewing window
    • Double door (solid outer, clear inner)
    • Microprocessor digital controller with dual display of set point and actual temperature
    • Other accessories available on request

    General & Laboratory Incubator Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

    Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a glass immersion thermometer.

    The vertical style units are fitted with the controls below the door, the horizontal style units with the controls fitted on the side.

    The incubators have a solid steel door as standard or as an alternative a door with an integral viewing window (VIS) can be fitted.

    As an option a double door, comprising steel outer with an inner glass door is also available.

    General & Laboratory Incubator Heating

    Heated by Incoloy sheathed elements; positioned below the chamber floor for natural convection units and fitted around the fan on the back or side wall of the chamber for mechanical convection units.
    The 200 litre units have fan circulation as standard.

    General & Laboratory Incubator Controls

    The control system comprises of a direct reading thermostat and overheat thermostat both with calibrated scales and tamper proof locks. They also include main switch with indicator and heat and overheat indicators.

    Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.

    General Purpose & Laboratory Incubator Specifications

    Vertical Style
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Weight
    (kg)
    without fan
    with fan
    MINI/6
    6
    15 x 23 x 19
    41 x 35 x 33
    N/A
    1
    1
    7
    MINI/18
    18
    26 x 26 x 27
    52 x 38 x 41
    N/A
    2
    2
    14
    MINI/30
    30
    24 x 36 x 35
    50 x 48 x 49
    50 x 48 x 62
    2
    2
    20
    MINI/40
    40
    32 x 36 x 35
    58 x 48 x 49
    58 x 48 x 62
    2
    3
    23
    MINI/50
    50
    33 x 49 x 33
    59 x 61 x 47
    59 x 61 x 59
    2
    3
    26
    MINI/75
    75
    33 x 49 x 45
    59 x 61 x 60
    59 x 61 x 72
    2
    3
    34

    Horizontal Style
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Weight
    (kg)
    without fan
    with fan
    INC/50
    50
    42 x 41 x 34
    45 x 37 x 34
    57 x 73 x 47
    2
    3
    31
    INC/75
    75
    42 x 53 x 34
    45 x 49 x 34
    57 x 85 x 47
    2
    3
    39
    INC/100
    100
    42 x 53 x 46
    45 x 49 x 46
    57 x 85 x 59
    3
    4
    48
    INC/125
    125
    52 x 53 x 46
    55 x 49 x 46
    68 x 85 x 59
    3
    5
    57
    INC/150
    150
    52 x 53 x 54
    55 x 49 x 54
    68 x 85 x 66
    3
    5
    66
    INC/200/F
    200
    N/A
    75 x 49 x 54
    87 x 85 x 66
    4
    7
    85

    Ordering

    All units have CLAD interior with thermostatic control as standard.
    Where options are required simply add the option code to the original reference.
    i.e MINI/75 with stainless steel interior and digital controller becomes MINI/75/SS/DIG

    Option codes

    Stainless steel / SS
    Fan circulation / F
    Viewing window / VIS
    Double door / DD
    Digital control system / DIG

  • Genlab Dual Purpose...

    Genlab Dual Purpose Benchtop Ovens / Incuabtors


    The Genlab range of Dual Purpose Ovens / Incubators combine the advantage of two temperature ranges in the same unit. Using bespoke firmware designed specifically for this chamber size, and a calibration class temperature sensor, we can offer accurate control up to 250.0ºC without temperature overshoot. The same chamber can also maintain a steady 30.0ºC* constant temperature by simply adjusting the set point. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs.

    Specifications

    • 10 sizes 6 to 200 litres (base mount controller design)
    • 6 sizes 50 to 200 litres (side mount controller design)
    • Temp range (Ambient +8ºC) to 250.0ºC
    • Resolution 0.1ºC
    • On screen historical trending (48 hours)
    • Manual or automatic overheat reset
    • High accuracy Pt100A duplex sensors<0.6ºC
    • Excellent stability <+/-0.6ºC
    • Low chamber uniformity

    Options

    • Fan assisted circulation (not available <30L)
    • Stainless steel chamber
    • 8 Stage profile control
    • Count down timer
    • 24/7 real time clock operation
    • Access ports (25, 50, 75 or 100mm)
    • Audible warnings
    • Traceable calibrations to national standards
    • Bespoke stands and stacking kits
    • Extractor unit
    • Extended warranty
    • Explosion relief panels (DP style only)
    • Bespoke solutions available upon request

    Benchtop Oven Design

    The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.

    They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

    Benchtop Oven Heating

    Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
    The 200 litre units have fan circulation as standard.

    Benchtop Oven Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs

    Benchtop Oven Specifications

    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.

    Natural Convection
    External dims.

    Internal dims. External dims.

    No of
    Shelves..
    Positions
    Wattage
    Weight
    (kg)
    Natural Convection
    Fan assisted
    Fan assisted
    Base mount designs
    (H x W x D cms)
    (H x W x D cms) (H x W x D cms)
    (H x W x D cms)
    MINIS/6/TDIG 6 15 X 23 X 19 46 x 35 x 33 N/A N/A 1..1 350 16
    MINIS/18/TDIG 18 26 x 26 x 27 55 x 38 x 41 N/A N/A 1..1 500 21
    MINIS/30/TDIG
    30
    24 x 36 x 35
    51 x 48 x 49
    24 x 36 x 31
    51 x 48 x 63
    2..2
    750
    30
    MINIS/40/DIG
    40
    32 x 36 x 35
    54 x 48 x 49
    32 x 36 x 31
    54 x 48 x 63
    2..3
    750
    35
    MINIS/50/DIG
    53
    33 x 49 x 33
    66 x 63 x 47
    33 x 49 x 29
    66 x 63 x 61
    2..3
    750
    45
    MINIS/75/DIG
    73
    33 x 49 x 45
    66 x 63 x 60
    33 x 49 x 41
    66 x 63 x 74
    2..3
    1000
    55
    MINIS/100/DIG
    99
    45 x 49 x 45
    78 x 63 x 60
    45 x 49 x 41
    78 x 63 x 74
    3..4
    1000
    60
    MINIS/125/DIG
    121
    55 x 49 x 45
    88 x 63 x 60
    55 x 49 x 41
    88 x 63 x 74
    3..5
    1500
    65
    MINIS/150/DIG
    143
    55 x 49 x 53
    88 x 63 x 68
    55 x 49 x 49
    88 x 63 x 82
    3..5
    1500
    70
    MINIS/200/F/DIG
    180
    N/A
    N/A
    75 x 49 x 49
    108 x 63 x 84
    4..7
    2000
    75
    Side mount designs
    DP/50/TDIG 58 42 x 40 x 35 58 x 73 x 48 45 x 36 x 35 58 x 73 x 48 2..3 750 35
    DP/75/TDIG 78 42 x 53 x 35 58 x 85 x 48 45 x 49 x 35 58 x 85 x 48 2..3 1000 45
    DP/100/TDIG 102 42 x 53 x 46 58 x 85 x 59 45 x 49 x 40 58 x 85 x 59 3..4 1000 55
    DP/125/TDIG 126 52 x 53 x 46 69 x 85 x 59 55 x 49 x 46 69 x 85 x 59 3..5 1500 65
    DP/150/TDIG 149 52 x 53 x 54 69 x 85 x 67 55 x 49 x 54 69 x 85 x 67 3..5 1500 70
    DP/200/TDIG 198 N/A N/A 75 x 49 x 54 89 x 85 x 67 4..7 2000 90

    Ordering

    All units have CLAD interior with a touch screen interface as standard.
    Where options are required simply add the option code to the original reference.
    E.g. MINIS/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINIS/50/TDIG/SS/F

    Contact sales for bespoke options

    Option codes

    Fan Assisted Circulation - F
    Stainless Steel Chamber - SS
    3 Stage Advanced Timer - TIM
    Access Ports - AP
    Audible Warning - AWA
    Single Points Calibrations - SPC
    Temp Uniformity Surveys-TUS
    Extraction Systems - EXT
    Extended Warranty - X1
    Explosion Relief Panels (DP style only) - EXP

  • Large Capacity...

    Genlab Large Capacity Multi-Purpose Ovens

    750 litre Oven
    LCO/750V/TDIG
    1250 litre oven
    LCO/1250H/TDIG/AWA

    The GENLAB Large Capacity Multipurpose Ovens offers a selection of highly efficient, reliable and cost effective ovens to suit most warming, drying and heat treatment processes. They feature our latest touch screen control system which offer intuitive control and excellent accuracies designed for industrial and laboratory ovens

    Features

    • Capacities 250 to 1250 Litres
      8 sizes (single door design)
      9 sizes (twin door design)
    • Temperature range:
      50ºC to 250ºC
    • On screen historical trending (48hours)
    • 8 Stage profile control
    • Count down timer
    • 24/7 real time clock operation
    • Manual or automatic overheat reset
    • High accuracy Pt100B duplex sensors <0.8ºC
    • Fan assisted circulation
    • Excellent stabilty <+/- 0.6ºC
    • Low chamber uniformity

    Options

    • Stainless steel chamber
    • Audible warnings
    • Explosion relief panels
    • Access ports (25m 50, 75 or 100mm)
    • Traceable calibrations to national standards
    • Bespoke stands and stacking kits
    • Extractor unit
    • Extended warranty
    • Bespoke solutions available upon request

    Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

    Fitted with fixed shelf runners and removable chrome plated wire grid shelves.

    The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.

    Heating

    Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H which have a base fan duct.

    Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. Advance features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.

    The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.

    Specifications

    Horizontal Style with Twin Doors
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Wattage/
    Voltages
    Weight
    (kg)
    LCO/250H/TDIG
    220
    54 x 92 x 44
    94 x 109 x 57
    3
    4
    2000/230
    96
    LCO/350H/TDIG
    320
    54 x 92 x 64
    94 x 109 x 77
    3
    4
    2500/230
    125
    LCO/425H/TDIG
    450
    76 x 92 x 64
    112 x 144 x 81
    4
    5
    3000/230
    140
    LCO/500H/TDIG
    535
    91 x 92 x 64
    127 x 144 x 81
    5
    7
    3000/230
    180
    LCO/650H/TDIG
    645
    91 x 92 x 77
    127 x 160 x 95
    5
    7
    6000/415
    300
    LCO/750H/TDIG
    750
    106 x 92 x 77
    142 x 160 x 95
    5
    8
    6000/415
    320
    LCO/850H/TDIG
    865
    122 x 92 x 77
    158 x 160 x 95
    5
    9
    6000/415
    340
    LCO/1000H/TDIG
    1005
    142 x 92 x 77
    178 x 160 x 95
    5
    11
    6000/415
    360
    LCO/1250H/TDIG
    1280
    142 x 122 x 74
    178 x 190 x 92
    5
    11
    6000/415
    390

    Vertical Style with Single Door
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Wattage/
    Voltages
    Weight
    (kg)
    LCO/250V/TDIG
    240
    91 x 51 x 52
    117 x 98 x 69
    5
    7
    2000/230
    90
    LCO/350V/TDIG
    345
    91 x 61 x 62
    117 x 108 x 79
    5
    7
    2500/230
    120
    LCO/425V/TDIG
    425
    91 x 61 x 77
    127 x 113 x 94
    5
    7
    3000/230
    150
    LCO/500V/TDIG
    535
    114 x 61 x 77
    150 x 113 x 94
    5
    9
    3000/230
    165
    LCO/650V/TDIG
    675
    114 x 77 x 77
    150 x 145 x 95
    5
    9
    6000/415
    280
    LCO/750V/TDIG
    760
    128 x 77 x 77
    164 x 145 x 95
    5
    10
    6000/415
    300
    LCO/850V/TDIG
    840
    142 x 77 x 77
    178 x 145 x 95
    5
    11
    6000/415
    320
    LCO/1000V/TDIG
    1005
    142 x 77 x 92
    178 x 145 x 110
    5
    11
    6000/415
    340

    Ordering

    All units have CLAD interior with touch screen interface as standard.

    Where options are required simply add the option code to the original reference.

    E.g. LCO/1250/TDIG with stainless steel interior and audible alarm becomes LCO/1250/TDIG/SS/AWA

    Contact sales for bespoke options.

    Option codes

    Stainless steel chamber - SS
    Audible Warning - AWA
    Explosion Relief Panels - EXP
    Access Ports - AP
    Traceable Calibration - SPC
    Stands / Stacking Kits - STAND
    Extractor Systems - EXT
    Extended Warranty - X1
    Castor Wheels (250/350 models only) - 1108

  • Large Capacity...

    Genlab Large Capacity Multi-Purpose Incubators

    750 litre Incubator
    LCI/750H/TDIG
    425 litre Incubator
    LCI/425V/TDIG

    The GENLAB Large Capacity Multipurpose Incubators offer a selection of highly efficient, reliable and cost effective units. They are suitable for larger applications of incubation, research and general laboratory applications. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for laboratory incubators.

    Features

    • Capacities 250 to 1250 litres
      8 sizes (single door design)
      9 sizes (dual door design)
    • Temperature range: ambient + 8 to 70ºC
    • Fluctuation +/-0.25ºC @ 37ºC
    • Resolution 0.1ºC
    • On screen historical trending (48 hours)
    • 8 Stage profile control
    • Count down timer
    • 24/7 real time clock operation
    • Manual or automatic overheat reset
    • High accuracy Pt100B duplex sensors <0.8ºC
    • Fan assisted circulation
    • Excellent stability <+/-0.6ºC
    • Low chamber uniformity

    Options

    • Stainless steel chamber
    • Viewing windows
    • Inner glass doors
    • Access ports (25, 50, 75, 100mm)
    • Bespoke stands and stacking kits
    • Audible warnings
    • Traceable calibrations to national standards
    • Extractor unit
    • Extended warranty
    • Explosion relief panels
    • Internal lights
    • Bespoke solutions available upon request

    Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel chamber available as an option.

    Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
    The vertical style units (V) are fitted with single doors, the horizontal style units (H) are fitted with twin doors.

    Heating

    Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H which have a base fan duct.

    Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is disaplayed for up to 48 hours and optional upgrades are available for alarm outputs.

    The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.

    Specifications

    Horizontal Style (Twin Door Design)
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Wattage/
    Voltage
    Weight
    (kg)
    LCI/250H/TDIG
    220
    54 x 92 x 44
    94 x 109 x 57
    3
    4
    1000/230
    96
    LCI/350H/TDIG
    320
    54 x 92 x 64
    94 x 109 x 77
    3
    4
    1500/230
    125
    LCI/425H/TDIG
    450
    76 x 92 x 64
    107 x 135 x 81
    4
    5
    2000/230
    140
    LCI/500H/TDIG
    535
    91 x 92 x 64
    127 x 135 x 81
    5
    7
    2000/230
    180
    LCI/650H/TDIG
    645
    91 x 92 x 77
    127 x 157 x 95
    5
    7
    2000/230
    280
    LCI/750H/TDIG
    750
    106 x 92 x 77
    142 x 157 x 95
    5
    8
    2000/230
    300
    LCI/850H/TDIG
    865
    122 x 92 x 77
    158 x 157 x 95
    5
    9
    2000/230
    320
    LCI/1000H/TDIG
    1050
    142 x 92 x 77
    178 x 157 x 95
    5
    11
    2000/230
    340
    LCI/1250H/TDIG
    1280
    142 x 122 x 74
    178 x 187 x 95
    5
    11
    2000/230
    370

    Vertical Style (Single Door Design)
    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (H x W x D cms)
    External dims.
    (H x W x D cms)
    No. of
    Shelves
    No. shelf
    positions
    Wattage/
    Voltage
    Weight
    (kg)
    LCI/250V/TDIG
    240
    91 x 51 x 52
    117 x 94 x 61
    5
    7
    1000/230
    90
    LCI/350V/TDIG
    345
    91 x 61 x 62
    117 x 104 x 79
    5
    7
    1500/230
    120
    LCI/425V/TDIG
    425
    91 x 61 x 77
    127 x 104 x 94
    5
    7
    2000/230
    150
    LCI/500V/TDIG
    535
    114 x 61 x 77
    150 x 104 x 94
    5
    9
    2000/230
    165
    LCI/650V/TDIG
    675
    114 x 77 x 77
    150 x 142 x 95
    5
    9
    2000/230
    260
    LCI/750V/TDIG
    760
    128 x 77 x 77
    164 x 142 x 95
    5
    10
    2000/230
    280
    LCI/850V/TDIG
    840
    142 x 77 x 77
    178 x 142 x 95
    5
    11
    2000/230
    300
    LCI/1000V/TDIG
    1005
    142 x 77 x 92
    178 x 142 x 110
    5
    11
    2000/230
    320

    Ordering

    All units have CLAD interior with microprocessor digital control as standard.

    Where options are required simply add the option code to the original reference.

    E.g. LCI/1250H/TDIG with stainless steel interior and audible alarm becomes LCI/1250H/TDIG/SS/AWA

    Contact sales for bespoke options.

    Option codes

    Stainless Steel - SS
    Viewing Window - VIS
    Double Door (Glass) - DD
    Access Ports - AP
    Stands/Stacking Kits - STACK
    Audible Warning - AWA
    Traceable Calibartion - SPC
    External Extraction Systems - EXT
    Extended Warranty - X1
    Explosion Relief Panels - EXP
    Internal Lights - IL
    Castor Wheels (250/350 models only) - 1108

  • Hot Air Steriliser Ovens

    Genlab Hot Air Steriliser Ovens

    100 litre Hot Air Steriliser with Digital Controls
    HAS/100/TDIG

    Hot air sterlisation is one method of effectively killing microbes of all kinds, especially bacteria, viruses and moulds on heat-resistant metals. Genlab's hot air steriliser ovens are used in many hospitals, laboratories, veterinary and medical clinics to sterilise surgical and cosmetic instruments, glass and petri dishes.

    It features our latest touch screen control panel, which offers intuitive control and excellent accuracies and features and interactive timer system. This ensures the count down timer does not start until the set point is reached and pauses if the chamber temperature falls below the set point. This ensures the sterilisation time is guaranteed at all times, irrespective of the sterilisation load and chamber volume.

    Features

    • 14 sizes 50 to 1000 litres
    • Audible/visual indication for 'End of Cycle'
    • Temperature range: 40 to 250ºC
      (50 to 250ºC on 415V models)
    • On screen historical trending (48 hours)
    • Interactive count down timer
    • Manual or automatic overheat reset
    • Fan assisted circulation
    • Easy clean powder coated body
    • Stainless steel chamber
    • Excellent stability <0.8ºC
    • Low chamber uniformity
    • Adjustable valve for exhaust air regulation

    Options

    • Access ports (25, 50, 75 or 100mm)
    • Mechanical door lock (supplied with 2 keys)
    • Filtered air inlet
    • Traceable calibrations to national standards
    • Bespoke stands and stacking kits
    • Extractor unit
    • Extended warranty
    • Bespoke solutions available upon request
    • Castor wheels

    Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from 304 stainless steel and supplied with removeable chrome plated wire shelves for good air circulation. Optional inlet filters are available with prevent small dust particles entering the chamber. Please note this adds 50mm width to the external dimensions below.

    Heating

    Heated by Incoloy sheathed elements positioned around the fan.

    Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heatinh applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and sterlisation sequences can be started from a single button press.

    Specifications

    Genlab ref.
    Number
    Capacity (litres)
    Internal dims
    (H x W x D cm)
    External dims
    (H x W x D cm)
    No. of shelves/
    Positions
    Wattage/
    Voltage
    Weight (kg)
    HAS/50/TDIG
    50
    45 x 32 x 35
    56 x 68 x 50
    2..3
    750 / 230
    35
    HAS/75/TDIG
    75
    45 x 49 x 35
    56 x 85 x 50
    2..3
    1000 / 230
    45
    HAS/100/TDIG
    100
    45 x 49 x 46
    56 x 85 x 61
    3..4
    1000 / 230
    55
    HAS/125/TDIG
    125
    55 x 49 x 46
    66 x 85 x 61
    3..5
    1500 / 230
    65
    HAS/150/TDIG
    145
    55 x 49 x 54
    66 x 85 x 69
    3..5
    1500 / 230
    70
    HAS/200/TDIG
    200
    75 x 49 x 54
    86 x 85 x 69
    4..7
    2000 / 230
    85
    HAS/250/TDIG
    240
    91 x 51 x 52
    117 x 94 x 69
    5..7
    2000 / 230
    90
    HAS/350/TDIG
    345
    91 x 61 x 62
    117 x 104 x 79
    5..7
    2500 / 230
    120
    HAS/425/TDIG
    425
    91 x 61 x 77
    117 x 104 x 94
    5..7
    3000 / 230
    150
    HAS/500/TDIG
    535
    114 x 61 x 77
    140 x 104 x 94
    5..9
    3000 / 230
    165
    HAS/650/TDIG
    675
    114 x 77 x 77
    150 x 142 x 95
    5..9
    6000 / 415
    280
    HAS/750/TDIG
    760
    128 x 77 x 77
    164 x 142 x 95
    5..10
    6000 / 415
    300
    HAS/850/TDIG
    840
    142 x 77 x 77
    178 x 142 x 95
    5..11
    6000 / 415
    320
    HAS/1000/TDIG
    1005
    142 x 77 x 92
    178 x 142 x 110
    5..11
    6000 / 415
    340

    Ordering

    All units have stainless steel interior with touch screen interface and interactive timer as standard.

    Where options are required, simply add the option code to the original reference.

    E.g. HAS/1000/TDIG with CAL cert and door lock becomes HAS/1000/TDIG/SPC/DL

    Option codes

    Access Port - AP
    Door lock - DL
    Filtered Air Inlet - FIL
    Traceable Calibration  - SPC
    Stands/Stacking Kits - STAND
    Extractor Systems - EXT
    Extended Warranty - X1
    Castor wheels (250 - 350L units only) - 1108

  • Unstirred Water Baths

    Unstirred Water Baths

    14 litre Unstirred Water Bath with digital controls & flat Lid
    WBH14/DIG/FL
    14 litre Unstirred Water Bath with flat Lid
    WBH14L/FL

    The GENLAB range of unstirred water baths is ideal for general laboratory use and are economical, reliable and very cost effective. Units are available with standard thermostat control or, for more detailed work, can have a PID Microprocessor digital controller.

    Features

    • 5 sizes: 6 to 50 litre
    • Temperature range 25ºC to 100ºC
    • Fluctuation ± 0.5 °C
    • Easy clean powder coated body
    • Stainless steel tank
    • Thermostat control and safety overheat thermostat
    • Full two year warranty
    • C.E. compliant

    Options

    • Gabled and flat lids
    • Microprocessor digital controller with dual display of set point and actual temperature

    Unstirred Water Bath Design

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior is constructed of stainless steel with a perforated tray covering the heating element.

    Heating

    Heated by Incoloy sheathed elements positioned in the base of the unit.

    Controls

    Control is via an easy set thermostat with indicator and an on/off switch.

    Options include a PID Microprocessor controller with dual displays of set point and actual temperature, which are auto-tuned for each individual unit to optimise the heat up, overshoot and control of temperature.

    Unstirred Water Bath Specifications

    Genlab ref.
    Number
    Capacity
    (litres)
    Internal dims.
    (D x W x H cms)
    External dims.
    (D x W x H cms)
    Weight
    (kg)
    WBH6
    6
    30 x 15 x 15
    33 x 21 x 26
    6
    WBH9
    9
    30 x 24 x 15
    33 x 30 x 26
    7
    WBH14
    14
    30 x 33 x 15
    33 x 39 x 26
    9
    WBH22
    22
    30 x 50 x 15
    33 x 56 x 26
    11
    WBH50
    50
    62 x 50 x 16
    66 x 56 x 32
    25

    Ordering

    All units have thermostat control as standard.
    For digital control add /DIG to code i.e. WBH22/DIG

    Unstirred Water Bath Accessories

    6 litre
    9 litre
    14 litre
    22 litre
    50 litre
    Flat
    C3901A
    C3902A
    C3903A
    C3904A
    C3905A
    Gabled
    C3901
    C3902
    C3903
    C3904
    C3905

  • Moisture Extraction Ovens

    Genlab Moisture Extraction Ovens

    100 litre Moisture Extraction Oven
    ME/100/TDIG

    The Genlab range of Moisture Extraction Ovens are specifically designed to provide rapid drying and removal of excess moisture. Increased air circulation around the chamber and larger extraction vents offer superior drying times.

    It features our latest touch screen control system which offer intuitive control and excellent accuracies designed for stable drying conditions.

    Features

    • 14 sizes 50 to 1000 litres
    • High speed air circulation
    • Temperature range: 40 to 250ºC
      (50 to 250ºC on 415 V models)
    • On screen historical trending (48 hours)
    • 8 stage profile control
    • Count down timer
    • 24/7 real time clock operation
    • Manual or automatic overheat reset
    • Excellent stability <0.8ºC
    • Low chamber uniformity

    Options

    • Stainless steel chamber
    • Audible warnings
    • Explosion relief panels
    • Drip trays
    • Access ports (25, 50, 75 or 100mm)
    • Traceable calibrations to national standards
    • Bespoke stands and stacking kits
    • Extended warranty
    • Bespoke solutions available upon request
    • Castor wheels

    Design

    The ovens are specifically designed for the rapid extraction of moisture and are fitted with a 75mm diameter outlet vent, suitable for connection to most external extraction systems.
    The exterior is constructed from mild steel coated in aluminium (CLAD), with a stainless steel chamber available as an option. It is also fitted with fixed shelf runners and removable chrome plated wire grid shelves.

    Heating

    Heated by Incoloy sheathed elements positioned around the fan.

    Controls

    The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heatinh applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and sterlisation sequences can be started from a single button press.

    Specifications

    Genlab ref.
    Number
    Capacity (litres)
    Internal dims
    (H x W x D cm)
    External dims
    (H x W x D cm)
    No. of shelves/
    Positions
    Wattage/
    Voltage
    Weight (kg)
    ME/50/TDIG
    50
    45 x 32 x 35
    56 x 68 x 50
    2..3
    750 / 230
    35
    ME/75/TDIG
    75
    45 x 49 x 35
    56 x 85 x 50
    2..3
    1000 / 230
    45
    ME/100/TDIG
    100
    45 x 49 x 46
    56 x 85 x 61
    3..4
    1000 / 230
    55
    ME/125/TDIG
    125
    55 x 49 x 46
    66 x 85 x 61
    3..5
    1500 / 230
    65
    ME/150/TDIG
    145
    55 x 49 x 54
    66 x 85 x 69
    3..5
    1500 / 230
    70
    ME/200/TDIG
    200
    75 x 49 x 54
    86 x 85 x 69
    4..7
    2000 / 230
    85
    ME/250/TDIG
    240
    91 x 51 x 52
    117 x 94 x 69
    5..7
    2000 / 230
    90
    ME/350/TDIG
    345
    91 x 61 x 62
    117 x 104 x 79
    5..7
    2500 / 230
    120
    ME/425/TDIG
    425
    91 x 61 x 77
    117 x 104 x 94
    5..7
    3000 / 230
    150
    ME/500/TDIG
    535
    114 x 61 x 77
    140 x 104 x 94
    5..9
    3000 / 230
    165
    ME/650/TDIG
    675
    114 x 77 x 77
    150 x 142 x 95
    5..9
    6000 / 415
    280
    ME/750/TDIG
    760
    128 x 77 x 77
    164 x 142 x 95
    5..10
    6000 / 415
    300
    ME/850/TDIG
    840
    142 x 77 x 77
    178 x 142 x 95
    5..11
    6000 / 415
    320
    ME/1000/TDIG
    1005
    142 x 77 x 92
    178 x 142 x 110
    5..11
    6000 / 415
    340

    Ordering

    All units have stainless steel interior with touch screen interface, high speed air circulation fan and increase vent size as standard.

    Where options are required, simply add the option code to the original reference.

    E.g. ME/1000/TDIG with CAL cert and drip tray becomes ME/1000/TDIG/SPC/DT

    Option codes

    Stainless Steel Chamber - SS
    Audible Warning  - AWA
    Explosion Relief Panels - EXP
    Drip Trays - DT
    Access Ports - AP
    Traceable Calibration - SPC
    Stands/Stacking Kits - STAND
    Extended Warranty - X1
    Castor Wheels (250 - 350L units only) - 1108

  • Wax Tank and Drying...

    Wax Tank and Drying System

    Genlab have designed a Wax Tank and Drying System that is ideal for post processing within the 3D printing industry.
    The system can be purchased as a complete kit or as individual parts to suit each requirement.

    Features

    • 100 litre drying oven
    • 40 litre wax tank with dipping rack assembly
    • Oven stand with work top
    • Wax tank stand

    Oven

    The drying oven has a capacity of 100 litres and a temperature range of 40°C to 250°C.

    The exterior is constructed from sheet steel finished in an easy clean powder coated paint and the interior chamber is made from stainless steel.
    Fitted with fixed shelf runners and removable chrome plated wire grid shelves. The top vent is fitted with a clip to hold a mercury-in-glass thermometer.

    The control system comprises of a PID Microprocessor controller with dual displays of set point and actual temperature.

    Heating is by Incoloy sheathed elements positioned around the circulation fan on the side wall of the chamber.

    Wax Tank

    The wax tank has a capacity of 40 litres and a temperature range of 40°C to 100°C.

    The exterior is constructed from sheet steel finished in an easy-clean powder coated paint and the interior chamber is made from stainless steel.

    The control system comprises of a direct reading thermostat with mains switch and heat indicator.

    Heating is by Incoloy sheathed elements positioned at the base of the unit.

    The unit comes with a Dipping rack assembly for ease of loading and transfer of samples

    Stands

    The oven stand is designed to contain the unit at a convenient under bench height and has a large surface work top.

    The wax tank stand is designed to sit the unit at a convenient working height alongside the oven.

    The stands can be connected together on either side as preferred.

    Ordering:

    The items can be ordered as a complete kit or as individual items.

    WTK100/40 - Wax tank kit complete with oven, wax tank and two stands
    OV/100/SS/F - 100 litre oven, stainless steel chamber, fan circulation and digital control
    WT40 - 40 litre wax tank with dipping assembly
    OVST - Oven stand with top
    WTST - Wax tank stand

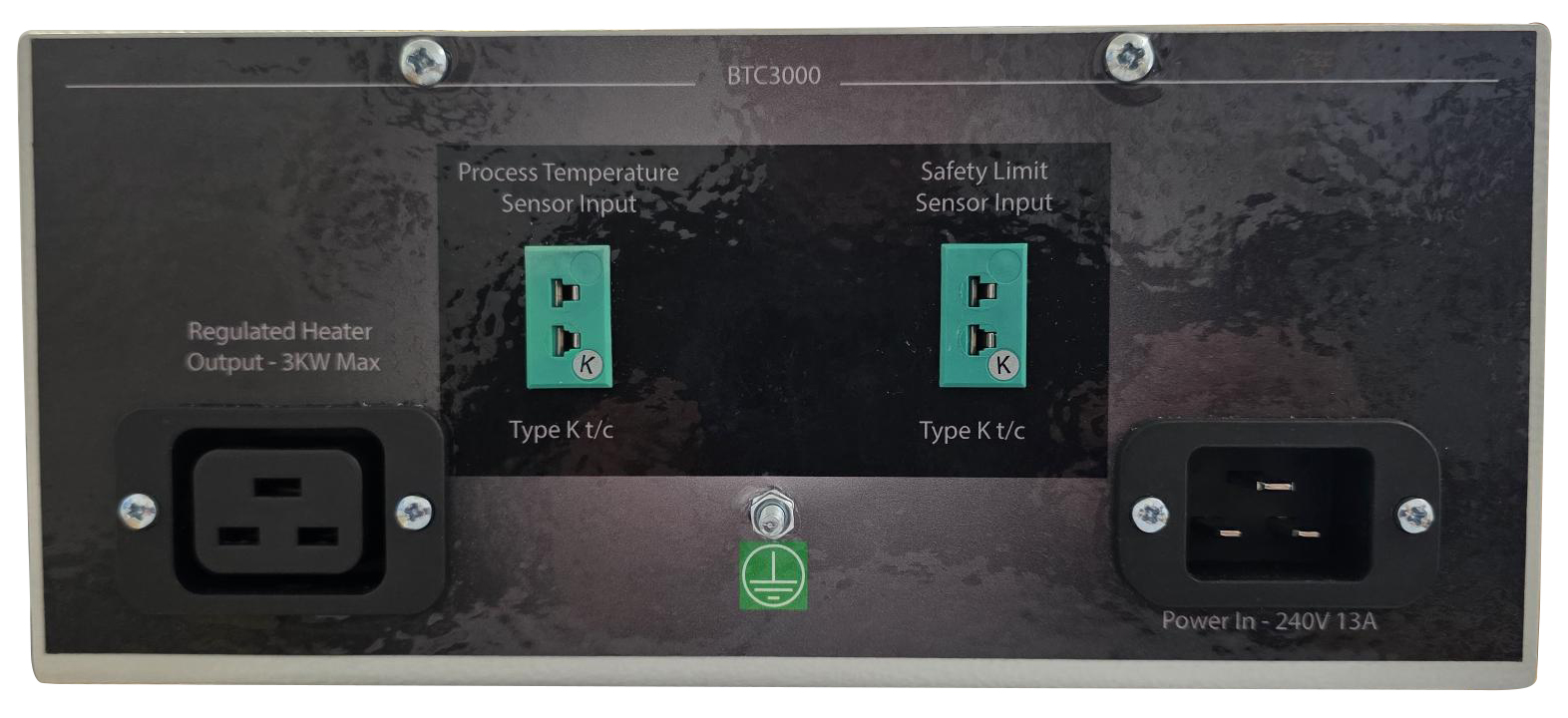

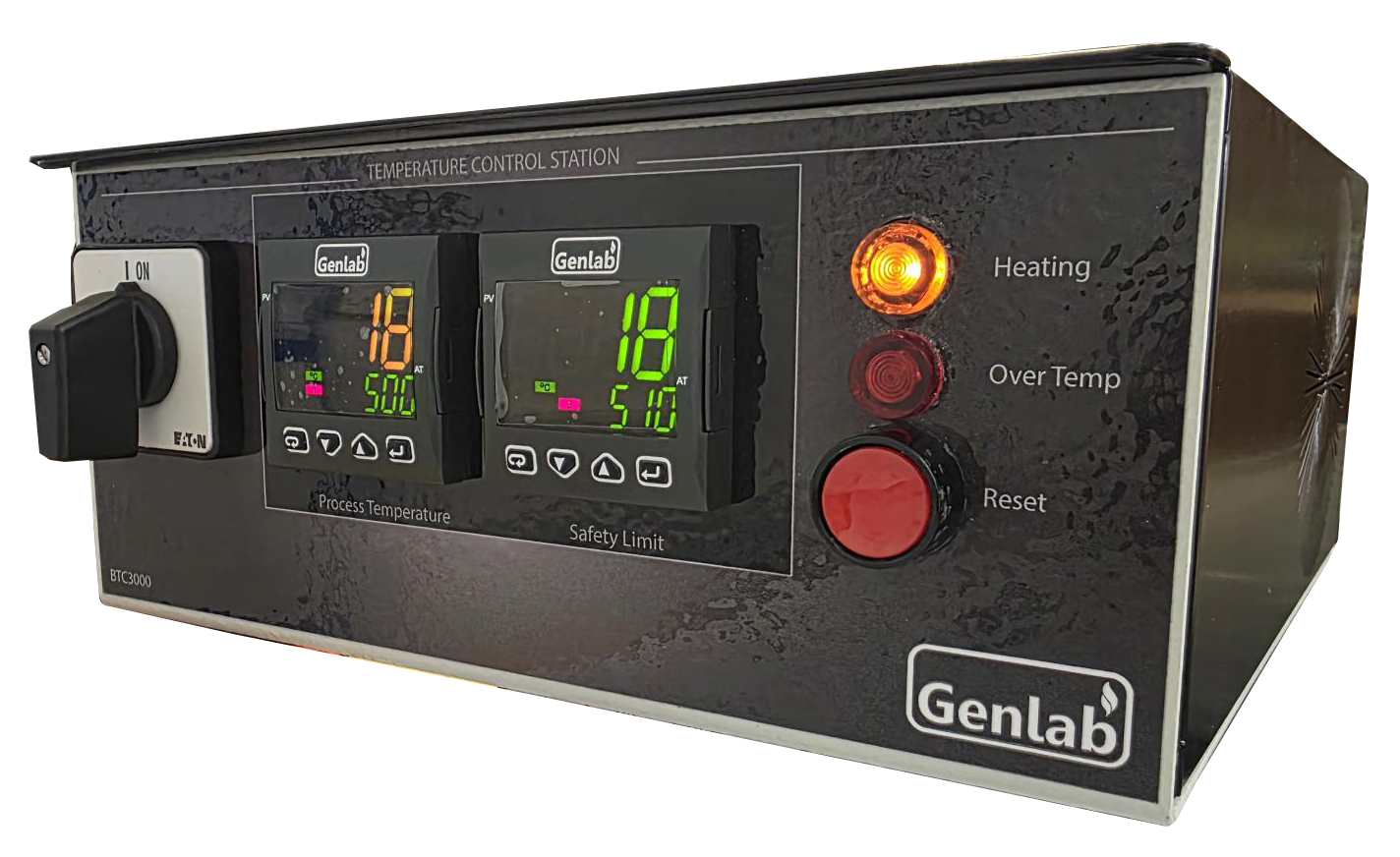

  • Genlab Bench Top PID...

    Genlab Bench Top Temperature PID Control Stations


    Genlab’s latest universal bench top PID Stations are popular among laboratory technicians, R&D engineers, and thermal engineers who want the latest PID controllers housed in an easy to operate and safely packaged solution. Using Eurotherm’s latest P116 controllers for both closed loop PID control with an integral safety control loop monitoring the status of the controller and process loops.

    Using the same features as our advanced industrial ovens, these PID stations allow users to simply connect to any heater load up to 2KW using the universal plug supplied. Feedback from the 2 x Type K temperature sensors supplied, will over accurate temperature control

    of any heating load. If the safety sensor is removed or the process is getting unexpectedly too warm, the station will go into an alarm mode. In alarm mode power to the heat source is isolated until it returns to a safe temperature and the operator presses the reset button.

    The units come complete with a standard IEC lead making it compatible globally. With some of the most advanced PID firmware available in today’s market, these bench top stations will provide you with excellent temperature control, reduced overshoot and great stability, yet are designed to be simple to operate. Rear mounted earthing points are also installed for 2 wire heater loads.

    Features

    • Compact station with integral Solid State Relay switching and high powered overheat relay
    • PID (Proportional, Integral and Derivative Control)
    • Indpendant safety monitoring loop
    • Only 250mm x 265mm x 120mm (W x D x H)
    • High heater rating output - 230V, 2000W
    • Manual overheat reset button with internal latching power relay
    • Works with all typies of heaters: cartridge, rod, strip, silicone, plate and ceramic etc
    • Supplied with 2 off universal type K sensor sockets allowing any style of thermocouple designs
    • Panel indication LED status
    • Supplied with 2 off flying lead type K sensors, 2m IEC lead and universal plug

    Options

    • 3000W Output versions available in same housing
    • Multi loop stations
    • 3 phase stations
    • Customised branding / colout choices
    • Bespoke heater and sensors available upon request
    • Profile controllers
    • Integral timers
    • Rear mounted sockets
    • Digital communications

    Design

    The PID stations can be tailor made to suit customer needs. As standard, the units are made with a main control loop and an overheat safety controller. Eacg controller uses its own type K sensor via the mini panel sockets. Any heater load can be connected via the IEC plug supplied and the LED indicates when power is being applied to the heat load.

    The units come with a standard IEC lead making it compatable globally to connect to any standard plug socket. It also comes with a universal plug (supplied loose) to connect any style of heater. Rear mounted earthing points are also installed for 2 wire heater loads.

    Controls

    Using Eurotherm's latest P116 controllers for both closed loop PID control with an intergral safety control loop monitoring the status of the controller and process loops. Profile control stations use Euotherm's latest EPC3016 8 stage profile control.

    Either option offers one of the most advanced PID firmwars available in todays market. these benchtop stations will provide you with excellent temperature control, reduced overshoot and great stability, yet designed to be simple to operate.

    Ordering

    BTC2000   2000W PID Station

    BTC3000   3000W PID Station

    BTP2000    2000W PID Station with Profile Control

    BTP3000    3000W PID Station with Profile Control

    Introductory offer of just £545 per station, order on line by clicking here

    Order On line

Laboratory Ovens, Lab Ovens & Laboratory Incubators

Genlab Classic Range - Incubators


The GENLAB Classic range of Incubators offers a selection of highly efficient, reliable, cost effective units to suit most biological analysis, research and general laboratory applications.

More >>

Genlab Classic Range - Ovens


The GENLAB Classic range of Ovens offers a selection of highly efficient, reliable, cost effective units to suit most drying, warming and general laboratory applications.

More >>

Laboratory Incubators - Multi-Purpose Benchtop Incubators


The GENLAB Digital range of Benchtop Incubators offer a range of highly efficient, reliable, cost effective units to suit most biological analysis, research and general laboratory applications.

More >>

Laboratory Ovens - Multi-Purpose Benchtop Ovens


The GENLAB range of Benchtop ovens offers a range of highly efficient, reliable and cost effective ovens to suit most drying, warming and heat treatment processes.

More >>

Laboratory Incubators - Prime Range


The Genlab range of Prime Incubators are the flagship brand of Genlab Incubators. They are built to the highest standards and packed with many features and enhancements.

More >>

Laboratory Ovens - Prime Range


The Genlab range of Prime Ovens are the flagship brand of Genlab Ovens. They are built to the highest standards and packed with many features and enhancements.

More >>

Dual Purpose Laboratory Incubators / Ovens


The GENLAB Dual Purpose Oven / Incubator combines the advantage of two temperature ranges in one unit .

More >>

Laboratory Large Capacity Incubators


The Genlab range of Large Capacity Incubators offers a selection of highly efficient, reliable and cost effective units. They are suitable for larger applications of incubation, research and general laboratory applications.

More >>

Laboratory Large Capacity Ovens


The Genlab range of Large Capacity Ovens offers a selection of highly efficient, reliable and cost effective ovens to suit most warming, drying and heat treatment processes.

More >>

Laboratory Incubators - Prime Series XL


The GENLAB Range of Prime Series XL Incubators are the flagship brand of Genlab Large Capacity Incubators with 17 available sizes between 250 and 1250 litres.

More >>

Laboratory Ovens - Prime Series XL


The GENLAB Range of Prime Series XL Ovens are the flagship brand of Genlab Large Capacity Ovens with 17 available sizes between 250 and 1250 litres.

More >>

Hot Air Sterliser Ovens


The GENLAB range of Hot Air Sterilisers are manufactured to conform with the strict requirements of hot air sterilisation in laboratories and hospitals.

More >>

Moisture Extraction Ovens


The GENLAB range of Moisture Extraction Ovens are specifically designed to provide rapid drying and removal of excess moisture.

More >>

Water Baths


The GENLAB range of unstirred water baths is ideal for general laboratory use and are economical, reliable and very cost effective.

More >>

Bench Top PID Control Stations


Genlab have designed a user friendly PID contol station with integral temperature safety system

More >>

Genlab manufacture a comprehensive range of Laboratory Ovens, Laboratory Incubators and Drying Cabinets ranging from 6 litres to 1250 litres. Our lab ovens and lab incubators are used in the science, education and medical markets worldwide.

All Genlab products are hand built in the United Kingdom, CE marked and manufactured with an easy clean powder coated body. Our ovens and incubators can be supplied with our bespoke touch screen control system or you can chose from a wide range of controllers and data recorders to suit the application. Furthermore we are also able to offer a full custom build service to meet customer's special requirements.

Search



Need Some Advice?

Contact us

* REQUIRED FIELDS



All Genlab products come with a two year warranty

Bespoke Ovens Gallery
Click here to view some of the bespoke ovens we have built
