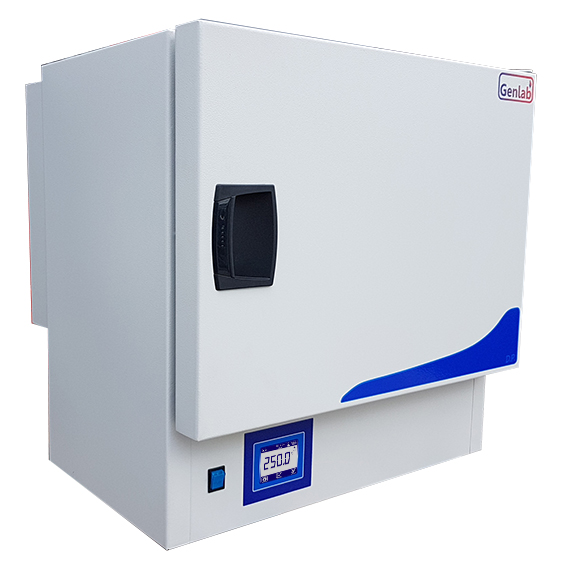

Genlab Dual Purpose Benchtop Ovens / Incuabtors


The Genlab range of Dual Purpose Ovens / Incubators combine the advantage of two temperature ranges in the same unit. Using bespoke firmware designed specifically for this chamber size, and a calibration class temperature sensor, we can offer accurate control up to 250.0ºC without temperature overshoot. The same chamber can also maintain a steady 30.0ºC* constant temperature by simply adjusting the set point. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs.

Specifications

  • 10 sizes 6 to 200 litres (base mount controller design)
  • 6 sizes 50 to 200 litres (side mount controller design)
  • Temp range (Ambient +8ºC) to 250.0ºC
  • Resolution 0.1ºC
  • On screen historical trending (48 hours)
  • Manual or automatic overheat reset
  • High accuracy Pt100A duplex sensors<0.6ºC
  • Excellent stability <+/-0.6ºC
  • Low chamber uniformity

Options

  • Fan assisted circulation (not available <30L)
  • Stainless steel chamber
  • 8 Stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • Access ports (25, 50, 75 or 100mm)
  • Audible warnings
  • Traceable calibrations to national standards
  • Bespoke stands and stacking kits
  • Extractor unit
  • Extended warranty
  • Explosion relief panels (DP style only)
  • Bespoke solutions available upon request

Benchtop Oven Design

The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.

They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Benchtop Oven Heating

Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.

Benchtop Oven Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs

Benchtop Oven Specifications

Genlab ref.
Number
Capacity
(litres)
Internal dims.

Natural Convection
External dims.

Internal dims. External dims.

No of
Shelves..
Positions
Wattage
Weight
(kg)
Natural Convection
Fan assisted
Fan assisted
Base mount designs
(H x W x D cms)
(H x W x D cms) (H x W x D cms)
(H x W x D cms)
MINIS/6/TDIG 6 15 X 23 X 19 46 x 35 x 33 N/A N/A 1..1 350 16
MINIS/18/TDIG 18 26 x 26 x 27 55 x 38 x 41 N/A N/A 1..1 500 21
MINIS/30/TDIG
30
24 x 36 x 35
51 x 48 x 49
24 x 36 x 31
51 x 48 x 63
2..2
750
30
MINIS/40/DIG
40
32 x 36 x 35
54 x 48 x 49
32 x 36 x 31
54 x 48 x 63
2..3
750
35
MINIS/50/DIG
53
33 x 49 x 33
66 x 63 x 47
33 x 49 x 29
66 x 63 x 61
2..3
750
45
MINIS/75/DIG
73
33 x 49 x 45
66 x 63 x 60
33 x 49 x 41
66 x 63 x 74
2..3
1000
55
MINIS/100/DIG
99
45 x 49 x 45
78 x 63 x 60
45 x 49 x 41
78 x 63 x 74
3..4
1000
60
MINIS/125/DIG
121
55 x 49 x 45
88 x 63 x 60
55 x 49 x 41
88 x 63 x 74
3..5
1500
65
MINIS/150/DIG
143
55 x 49 x 53
88 x 63 x 68
55 x 49 x 49
88 x 63 x 82
3..5
1500
70
MINIS/200/F/DIG
180
N/A
N/A
75 x 49 x 49
108 x 63 x 84
4..7
2000
75
Side mount designs
DP/50/TDIG 58 42 x 40 x 35 58 x 73 x 48 45 x 36 x 35 58 x 73 x 48 2..3 750 35
DP/75/TDIG 78 42 x 53 x 35 58 x 85 x 48 45 x 49 x 35 58 x 85 x 48 2..3 1000 45
DP/100/TDIG 102 42 x 53 x 46 58 x 85 x 59 45 x 49 x 40 58 x 85 x 59 3..4 1000 55
DP/125/TDIG 126 52 x 53 x 46 69 x 85 x 59 55 x 49 x 46 69 x 85 x 59 3..5 1500 65
DP/150/TDIG 149 52 x 53 x 54 69 x 85 x 67 55 x 49 x 54 69 x 85 x 67 3..5 1500 70
DP/200/TDIG 198 N/A N/A 75 x 49 x 54 89 x 85 x 67 4..7 2000 90

Ordering

All units have CLAD interior with a touch screen interface as standard.
Where options are required simply add the option code to the original reference.
E.g. MINIS/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINIS/50/TDIG/SS/F

Contact sales for bespoke options

Option codes

Fan Assisted Circulation - F
Stainless Steel Chamber - SS
3 Stage Advanced Timer - TIM
Access Ports - AP
Audible Warning - AWA
Single Points Calibrations - SPC
Temp Uniformity Surveys-TUS
Extraction Systems - EXT
Extended Warranty - X1
Explosion Relief Panels (DP style only) - EXP
