Unstirred Water Baths

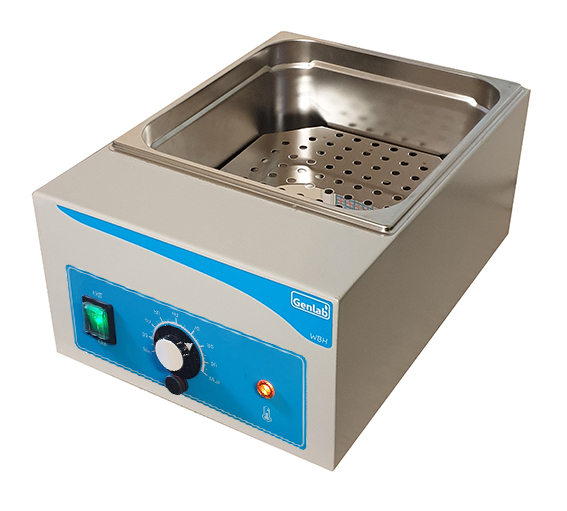

13 litre Unstirred Water Bath
WBH13

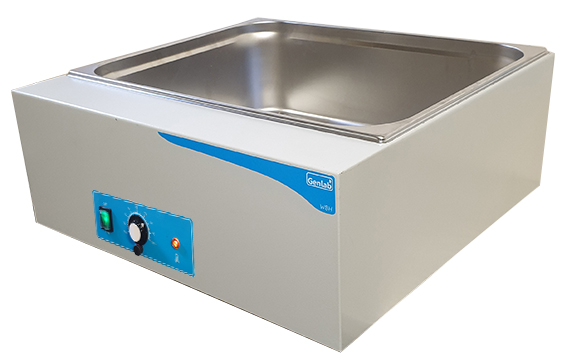

54 litre Unstirred Water Bath
WBH54

Genlab have been designing and building water baths for over 50 years. Our Classic range are built to the highest standards and fully insulated offering economic running costs. Simple to use with thermostatic control, these baths are reliable and suit all laboratory conditions. For extra temperature range and increased energy performance, optional lids are also available

Features

  • 5 sizes: 8 to 54 litres
  • Temperature range 25ºC to 80ºC (without lid)
  • Temperature range 25ºC to 100ºC (with lid)
  • Thermostatic control
  • Easy clean powder coated body
  • Stainless steel tank
  • Internal overheat protection

Options

  • Stainless steel flat lids
  • Gabled lids
  • Stainless steel external body
  • Traceable calibration to national standards
  • Drain valve and tap
  • Extended warranty

Unstirred Water Bath Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. It is fitted with a stainless steel interior bath which will allow filling up to 90% total volume. Each bath is supplied with stainless steel base tray. Heating is applied to the base of the bath, which enhances temperature uniformity and optimises internal spaces.

Heating

Heated by silicone heater mats with integral safety shut down if detecting dry boil conditions. Please note these baths are not designed to dry boil so always ensure water is in the bath before you turn on.

Controls

The control system comprises of a sample thermostatic dial, with element indication. The temperature set point can be locked in place once set with the locking mechanism.

Unstirred Water Bath Specifications

Genlab ref.
Number
Capacity
(approx litres)
Internal dims.
(D x W x L cms)
External dims.
(H x W x L cms)
Wattage
Voltage
Weight
(kg)
WBH8
8.1
20 x 30 x 15
27 x 33 x 29
400
230
6
WBH13
12.5
15 x 30 x 32
22 x 33 x 47
800
230
7
WBH18
17.3
20 x 30 x 32
27 x 33 x 47
800
230
9
WBH27
27
20 x 30 x 50
27 x 33 x 65
1200
230
11
WBH54
53.8
20 x 49 x 61
28 x 66 x 65
2400
230
25

Ordering

All units have a powder coated mild steel exterior with stainless steel available as an option. All units come fully insulated with a stainless steel interior bath. Lids need to be ordered separately as an option. Where options are required, simply add the option code to the original reference.

Note, adding a drain valve and tap will add 5cm to overall height

E.g. WBH13 with stainless steel exterior and gabled lid becomes WBH13/SSE/GL

Unstirred Water Bath Accessories

  • Stainless steel flat lid - FL
  • Gabled lid - GL
  • Stainless steel body - SSE
  • Drain valve and tap - DVT
  • Traceable calibration - SPC
  • Extended warranty - X1
