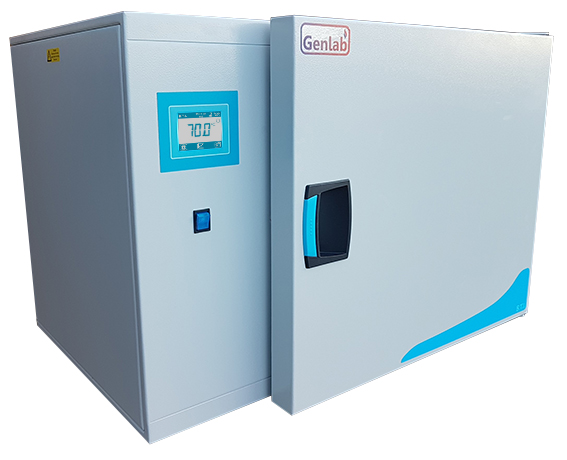

Genlab Multi Purpose Benchtop Incubators


The Genlab range of Benchtop Incubators offers a range of highly efficient, reliable and cost effective units to suit most biological analsyis, research and general laboratory applications. Available in a variety of sizes and designed with both side or base mounted displays to suit your exact needs. Featuring our latest touch screen control system which offers intuitive control and excellent accuracies designed for industrial and laboratory incubators.

Specifications

  • 10 sizes 6 to 200 litres (base mount controller design)
  • 6 sizes 50 to 200 litres (side mount controller design)
  • Temp range (ambient +5ºC) to 70ºC
  • Fluctuation +/-0.25 ºC @ 37 ºC
  • High resolution 0.1ºC
  • On screen historical trending (48 hours)
  • Manual or automatic overheat reset
  • High accuracy Pt100B duplex sensors<0.8ºC
  • Excellent stability <+/-0.6ºC (fan assisted)
  • Low chamber uniformity

Options

  • Fan assisted circulation (not available <30L)
  • Stainless steel chamber
  • Viewing windows
  • Inner glass doors
  • 8 Stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • Access ports (25, 50, 75 or 100mm)
  • Audible warnings
  • Traceable calibrations to national standards
  • Bespoke stands and stacking kits
  • Extractor unit
  • Extended warranty
  • Internal lights
  • Bespoke solutions available upon request

Benchtop Oven Design

The exterior is constructed from sheet steel and finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD), with a stainless steel (SS) chamber available as an option.

They are fitted with fixed shelf runners and removable chrome plated wire grid shelves.

Benchtop Oven Heating

Heated by Incoloy sheathed elements; positioned in the base of the oven on all natural convection ranges. Fan assisted ranges have elements in the rear on base mount designs and in the side on side mount designs.
The 200 litre units have fan circulation as standard.

Benchtop Oven Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs

Benchtop Oven Specifications

Genlab ref.
Number
Capacity
(litres)
Internal dims.

Natural Convection
External dims.

Internal dims. External dims.

No of
Shelves..
Positions
Wattage
Weight
(kg)
Natural Convection
Fan assisted
Fan assisted
Base mount designs
(H x W x D cms)
(H x W x D cms) (H x W x D cms)
(H x W x D cms)
MINI/6/TDIG 6 15 X 23 X 19 46 x 35 x 33 N/A N/A 1..1 150 16
MINI/18/TDIG 18 26 x 26 x 27 55 x 38 x 41 N/A N/A 1..1 350 21
MINI/30/TDIG
30
24 x 36 x 35
51 x 48 x 49
24 x 36 x 31
51 x 48 x 63
2..2
500
30
MINI/40/TDIG
40
32 x 36 x 35
54 x 48 x 49
32 x 36 x 31
54 x 48 x 63
2..3
500
35
MINI/50/TDIG
53
33 x 49 x 33
66 x 63 x 47
33 x 49 x 29
66 x 63 x 61
2..3
500
45
MINI/75/TDIG
73
33 x 49 x 45
66 x 63 x 60
33 x 49 x 41
66 x 63 x 74
2..3
750
55
MINI/100/TDIG
99
45 x 49 x 45
78 x 63 x 60
45 x 49 x 41
78 x 63 x 74
3..4
750
60
MINI/125/TDIG
121
55 x 49 x 45
88x 63 x 60
55 x 49 x 41
88 x 63 x 74
3..5
750
65
MINI/150/TDIG
143
55 x 49 x 53
88 x 63 x 68
55 x 49 x 49
88 x 63 x 82
3..5
750
70
MINI/200/F/TDIG
180
N/A
N/A
75 x 49 x 49
108 x 63 x 84
4..7
1000
80
Side mount designs
INC/50/TDIG 58 42 x 40 x 35 58 x 73 x 48 45 x 36 x 35 58 x 73 x 48 2..3 500 35
INC/75/TDIG 78 42 x 53 x 35 58 x 85 x 48 45 x 49 x 35 58 x 85 x 48 2..3 750 45
INC/100/TDIG 102 42 x 53 x 46 58 x 85 x 59 45 x 49 x 40 58 x 85 x 59 3..4 750 55
INC/125/TDIG 126 52 x 53 x 46 69 x 85 x 59 55 x 49 x 46 69 x 85 x 59 3..5 750 65
INC/150/TDIG 149 52 x 53 x 54 69 x 85 x 67 55 x 49 x 54 69 x 85 x 67 3..5 750 70
INC/200/F/TDIG 198 N/A N/A 75 x 49 x 54 89 x 85 x 67 4..7 1000 90

Ordering

All units have CLAD interior with a touch screen interface as standard.
Where options are required simply add the option code to the original reference.
E.g. MINI/50/TDIG with fan assisted convection and stainless steel interior and fan circulation becomes MINI/50/TDIG/SS/F

Contact sales for bespoke options

Option codes

Fan Assisted Circulation - F
Stainless Steel Chamber - SS
3 Stage Advanced Timer - TIM
Viewing Window - VIS
Double Door (Glass) - DD
Access ports - AP
Audible Warning - AWA
Single Points Calibrations-SPC
Temp Uniformity Surveys - TUS
Extraction Systems - EXT
Extended Warranty - X1
Internal Lights - IL
Stands/Stacking Kits - STACK
