Genlab Prime Stainless Steel Ovens

Genlab Prime XL Series.jpg

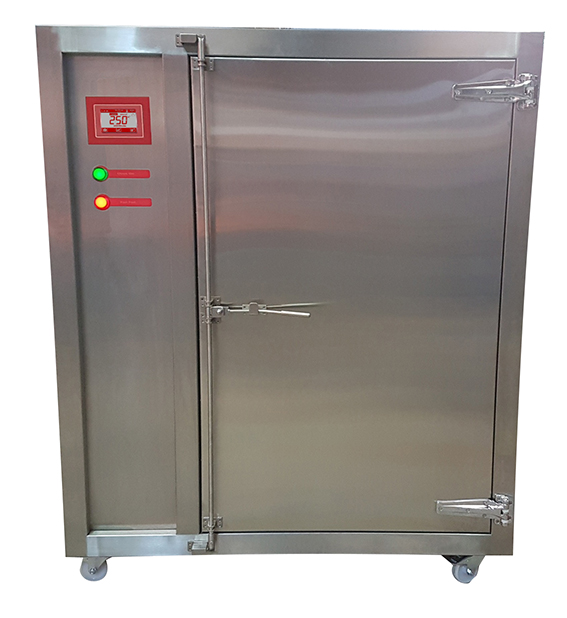

750 Litre Stainless Steel Oven
PSS/750V/TDIG
Genlab Prime XL Series 2.jpg

This range of Prime Stainless Steel Ovens are the flagship brand of Genlab Ovens manufactured in 304 Stainless Steel. They have been designed to offer increased durability for corrosive processes that are not compatable with standard liner materials.

As standard, the Prime SS range are built around a 316 stainless steel framework and lined with 304 stainless steel panels. the interior chamber is made from 304 stainless steel, fully seam welded to reduce leak paths, with all internal wetted parts made from stainless steel including heating elements, fan blades, fan guards, shelving and vents.

316 Stainless steel interior panels are available as optional upgrades, however, please check compatability charts with your process.

Features

  • Capacities 250 to 1250 Litres
    8 sizes (single door design)
    9 sizes (twin door design)
  • Temperature range:
    50ºC to 250ºC
  • 304 Stainless steel chamber and associated wetted parts
  • 304 Exterior construction
  • On screen historical trending (48hours)
  • 8 stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • Manual or automatic overheat reset
  • High accuracy Pt100A duplex sensors <0.6ºC
  • Stainless steel fan assisted circulation
  • Excellent stabilty <+/- 0.8ºC
  • Low chamber uniformity
  • Audible warnings
  • Quick responding
  • Heavy duty castor wheels on all models
  • Energy efficient with intergral energy meter
  • New - Set point lock feature

Options

  • 10 Menu x 8 Stage Profile Controller with Cyclic feature
  • 300ºC continuous temperature ratings
  • 316 Stainless steel upgrades
  • Reinforced total load
  • Reinforced shelving (40KG)
  • Explosion relief panels
  • Access ports (25, 50, 75 or 100mm)
  • Traceable calibrations to national standards
  • Bespoke stands and stacking kits
  • Extractor unit
  • Extended warranty
  • Bespoke solutions available upon request
  • 3 Phase upgrade for quicker response (standard above 350L)

Design

The exterior is constructed around a stainless steel  frame and finished with stainless steel panels covering heavy duty insulation. The interior chamber is made from 304 stainless steel and fitted with fixed stainless steel shelf runners are removable stainless steel mesh shelves.

All wetted parts are stainless steel with silicone door seals.

The vertical style units are fitted with single doors, the horizontal style units are fitted with twin doors.

Heating

Heated by stainless steel sheathed elements positioned in the side fan duct for all units except the 250H and 350H, which have a base fan duct.

Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and integral overheat system by using 2 individual Pt100 sensors. Advance features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is displayed for up to 48 hours and optional upgrades are available for alarm outputs.

The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.

Specifications

Horizontal Style with Twin Doors
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Wattage/
Voltages
Weight
(kg)
PSS/250H/TDIG
220
54 x 92 x 44
105 x 113 x 68
3
4
3000/230
200
PSS/350H/TDIG
320
54 x 92 x 64
105 x 113 x 88
3
4
3000/230
245
PSS/425H/TDIG
450
76 x 92 x 64
104 x 139 x 88
4
5
4500/415
290
PSS/500H/TDIG
535
91 x 92 x 64
119 x 139 x 88
5
7
4500/415
335
PSS/650H/TDIG
645
91 x 92 x 77
127 x 153 x 101
5
7
7500/415
385
PSS/750H/TDIG
750
106 x 92 x 77
147 x 153 x 101
5
8
7500/415
430
PSS/850H/TDIG
865
122 x 92 x 77
158 x 153 x 101
5
9
7500/415
465
PSS/1000H/TDIG
1005
142 x 92 x 77
178 x 153 x 101
5
11
9000/415
535
PSS/1250H/TDIG
1280
142 x 122 x 74
178 x 183 x 98
5
11
9000/415
605

Vertical Style with Single Door
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Wattage/
Voltages
Weight
(kg)
PSS/250V/TDIG
240
91 x 51 x 52
118 x 96 x 76
5
7
3000/230
190
PSS/350V/TDIG
345
91 x 61 x 62
118 x 106 x 86
5
7
3000/230
235
PSS/425V/TDIG
425
91 x 61 x 77
119 x 108 x 101
5
7
4500/415
280
PSS/500V/TDIG
535
114 x 61 x 77
142 x 108 x 101
5
9
4500/415
325
PSS/650V/TDIG
675
114 x 77 x 77
150 x 138 x 101
5
9
7500/415
375
PSS/750V/TDIG
760
128 x 77 x 77
165 x 138 x 101
5
10
7500/415
420
PSS/850V/TDIG
840
142 x 77 x 77
178 x 138 x 101
5
11
7500/415
455
PSS/1000V/TDIG
1005
142 x 77 x 92
178 x 138 x 116
5
11
9000/415
525

Ordering

All units have a stainless steel interior/exterior with a touch screen interface with all the timer features enabled as standard.

Where options are required, simply add the option code to the original reference.

E.g. PSS/1250/TDIG with extended temperature range and cyclic profile control becomes PSS/1250/TDIG/300/10PRO

Contact sales for bespoke options.

Option codes

10 Menu x 8 Stage Profile Controller with Cyclic feature - 10PRO
Extended Temp Range 300ºC - 300
316 Stainless Steel Upgrade  - 316
Access Ports - AP
Explosion Relief Panels - EXP
Traceable Calibration - SPC
3 Point Traceable Calibration - 3PC
Stands - STAND
Extractor Systems - EXT
Extended Warranty - X1
3 Phase Upgrade - 3PH
