Genlab Prime XL Series Large Capacity Multi-Purpose Incubators

Genlab Prime XL Series Incuabtor1.jpg

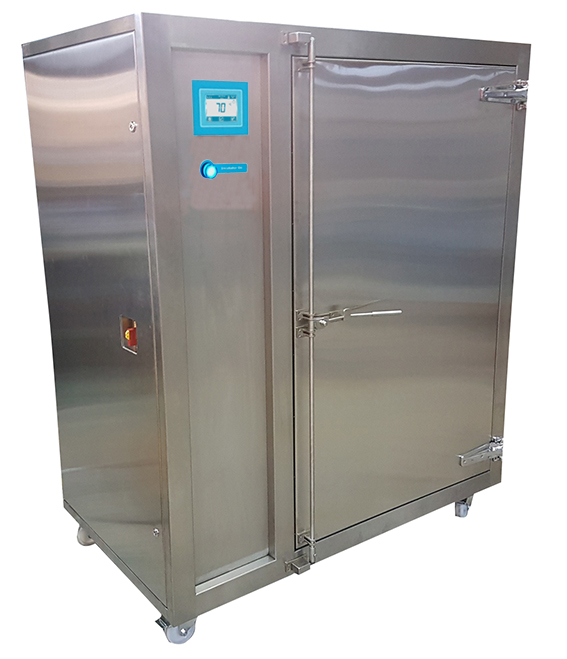

PRI/750V/TDIG/SSE
(Stainless steel exterior option)
Genlab Prime XL Series Incubator2.jpg

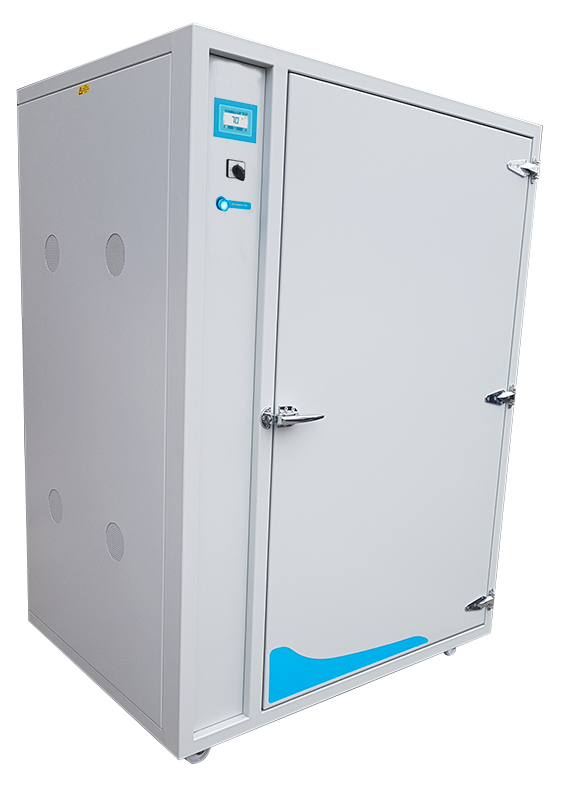

PRI/650V/TDIG

This range of Prime XL Incubators are the flagship brand of Genlab Large Capacity Incubators. They are built to the highest standards and packed with features and enhancements. As standard, the Prime XL range offers a mirror polished stainless steel interior, increased accuracies and an extended temperature range of 100.0ºC. Built around a heavy duty panelled framework, we can offer increased load capability in this range and multiple reinforced shelves. It features our latest touch screen control system which offers intuitive control designed for laboratory and industrial incubators.

Features

  • Capacities 250 to 1250 litres
    8 sizes (single door design)
    9 sizes (dual door design)
  • Mirror polished stainless steel chamber
  • Temperature range: ambient + 8 to 100.0ºC
  • Fluctuation +/-0.15ºC @ 37ºC
  • Resolution 0.1ºC
  • On screen historical trending (48 hours)
  • 8 Stage profile control
  • Count down timer
  • 24/7 real time clock operation
  • Manual or automatic overheat reset
  • High accuracy Pt100A duplex sensors <0.6ºC
  • Fan assisted circulation
  • Excellent stability <+/-0.6ºC
  • Low chamber uniformity
  • Heavy duty castor wheels on all models
  • Audible warnings

Options

  • Stainless steel exterior
  • Reinforced total load
  • Reinforced shelves (up to 40KG each)
  • Double glazed viewing windows
  • Inner glass doors (max 70 ºC)
  • Access ports (25 ,50 ,75, 100mm)
  • Bespoke stands and stacking kits
  • Traceable calibrations to national standards
  • Extractor unit
  • Extended warranty
  • Explosion relief panels
  • Internal lights
  • Bespoke solutions available upon request

Design

The exterior is constructed around a structural frame and finished with powder coated panels around heavy duty insulation. The interior chamber is made from 304 stainless steel and fitted with fixed shelf runners and removable chrome plated wire grid shelves.

The vertical style units (V) are fitted with single doors, the horizontal style units (H) are fitted with twin doors.

Heating

Heated by Incoloy sheathed elements positioned in the side fan duct for all units except the 250H and 350H, which have a base fan duct.

Controls

The control system comprises of a bespoke touch screen interface that offers both accurate temperature control and an integral overheat system by using 2 individual Pt100 sensors. Advanced features can be turned on and off to suit bespoke heating applications and tailored to customer preference. Oven trending is disaplayed for up to 48 hours and optional upgrades are available for alarm outputs.

The control panels are fitted on the side of each unit except the 250H and 350H, which are fitted in the base.

Specifications

Horizontal Style (Twin Door Design)
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Wattage/
Voltage
Weight
(kg)
PRI/250H/TDIG
220
54 x 92 x 44
104 x 109 x 57
3
4
1500/230
96
PRI/350H/TDIG
320
54 x 92 x 64
104 x 109 x 77
3
4
2000/230
125
PRI/425H/TDIG
450
76 x 92 x 64
107 x 135 x 81
4
5
2500/230
140
PRI/500H/TDIG
535
91 x 92 x 64
127 x 135 x 81
5
7
2500/230
180
PRI/650H/TDIG
645
91 x 92 x 77
127 x 157 x 95
5
7
2500/230
280
PRI/750H/TDIG
750
106 x 92 x 77
142 x 157 x 95
5
8
2500/230
300
PRI/850H/TDIG
865
122 x 92 x 77
158 x 157 x 95
5
9
3000/230
320
PRI/1000H/TDIG
1050
142 x 92 x 77
178 x 157 x 95
5
11
3000/230
340
PRI/1250H/TDIG
1280
142 x 122 x 74
178 x 187 x 95
5
11
3000/230
370

Vertical Style (Single Door Design)
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves
No. shelf
positions
Wattage/
Voltage
Weight
(kg)
PRI/250V/TDIG
240
91 x 51 x 52
127 x 94 x 61
5
7
1500/230
90
PRI/350V/TDIG
345
91 x 61 x 62
127 x 104 x 79
5
7
2000/230
120
PRI/425V/TDIG
425
91 x 61 x 77
127 x 104 x 94
5
7
2500/230
150
PRI/500V/TDIG
535
114 x 61 x 77
150 x 104 x 94
5
9
2500/230
165
PRI/650V/TDIG
675
114 x 77 x 77
150 x 142 x 95
5
9
2500/230
260
PRI/750V/TDIG
760
128 x 77 x 77
164 x 142 x 95
5
10
3000/230
280
PRI/850V/TDIG
840
142 x 77 x 77
178 x 142 x 95
5
11
3000/230
300
PRI/1000V/TDIG
1005
142 x 77 x 92
178 x 142 x 110
5
11
3000/230
320

Ordering

All units have a stainless steel interior, forced convection and with touch screen interface with all the timer features enabled a standard.

Where options are required, simply add the option code to the original reference.

E.g. PRI/250H/TDIG with viewing window and explosion relief panel becomes PRI/250H/TDIG/VIS/EXP.

Contact sales for bespoke options.

Option codes

Stainless Steel Exterior - SSE
Viewing Window - VIS
Double Door (Glass) - DD
Access Ports - AP
Stands/Stacking Kits - STACK
Traceable Calibartion - SPC
External Extraction Systems - EXT
Extended Warranty - X1
Explosion Relief Panels - EXP
Internal Lights - IL
