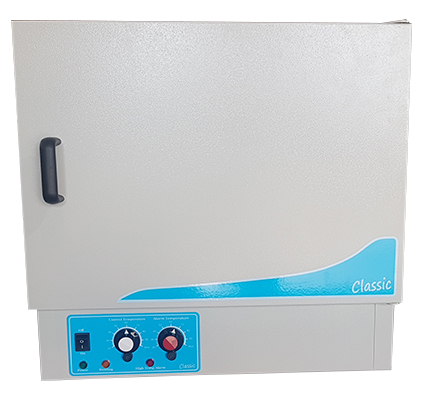

Genlab Classic Incubators


The GENLAB range of Classic Incubators offers a selection of highly efficient, reliable and cost effective units to suit most biological analysis, research and general laboratory applications. The simple thermostat system is easy to use and the units can be built up to meet individual requirements.

Specifications

  • 7 sizes 6 to 100 litres
  • Temperature range:
    Ambient +5ºC to 70ºC (natural convection)
    Ambient +8ºC to 70ºC (fan assisted)
  • Fluctuation +/- 0.25ºC @ 37ºC
  • Easy to use thermostatic control
  • Independent overheat thermostat

Options

  • Stainless steel chamber
  • Fan assisted circulation  (30 litre+)
  • Alternative door with integral viewing window
  • Double door  solid outer, clear inner
  • Access ports (25, 50, 75 or 100mm)
  • Traceable calibrations to national standards
  • Extended warranty

Genlab Classic Incubator Design

The exterior is constructed from sheet steel finished in an easy clean powder coated paint. The interior chamber is made from mild steel coated with aluminium (CLAD) with a stainless steel (SS) chamber available as an option.
Fitted with fixed shelf runners and removable chrome plated wire grid shelves.
The incubators have an insulated door as standard.
As an option a door with an integral viewing window (VIS) can be fitted, or as an alternative, a double door (DD) which comprises of a steel outer with an inner glass door, is also available..

Genlab Classic Incubator Heating

Heated by Incoloy sheathed elements, positioned below the chamber floor for natural convection units and fitted around the fan on the back wall of the chamber for assisted air circulation units.

Genlab Classic  Incubator Controls

The control system comprises of a direct reading thermostat and overheat thermostat, both with calibrated scales and tamper proof locks. They also include a mains switch with indicator and heat and overheat indicators.

Genlab Classic Incubator Specifications

Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
No. of
Shelves...
Positions
Wattage
Weight
(kg)
without fan
with fan
MINI/6
6
15 x 23 x 19
39 x 32 x 33
N/A
1...1
150
16
MINI/18
18
26 x 26 x 27
52 x 38 x 41
N/A
2...2
350
21
MINI/30
30
24 x 36 x 35
50 x 48 x 49
50 x 48 x 62
2...2
500
30
MINI/40
40
32 x 36 x 35
58 x 48 x 49
58 x 48 x 62
2...3
500
35
MINI/50
50
33 x 49 x 33
59 x 61 x 47
59 x 61 x 59
2...3
500
45
MINI/75
75
33 x 49 x 45
59 x 61 x 60
59 x 61 x 72
2...3
750
55
MINI/100
100
45 x 49 x 45
71 x 61 x 60
71 x 61 x 72
3...4
750
60

Ordering

All units have CLAD interior with thermostatic control and overheat.
Where options are required simply add the option code to the original reference.
E.g. MINI/75 with stainless steel interior and fan circulation becomes MINI/75/SS/F.
Contact sales for bespoke options.

Option codes

Stainless steel /SS
Fan circulation /F
Viewing window /VIS
Double Door /DD
Access ports/AP
Stands/Stacking Kits/STACK
Traceable Calibration / SPC
Extended Warranty / X1
