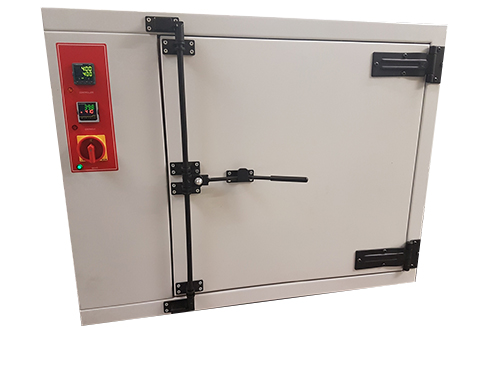

High Temperature Ovens (500°C)

  • Purpose built High Temperature Ovens
  • Temperatures up to 500°C
  • Accurate and reliable
  • Sturdy construction
  • Made to measure
  • Range of Controllers/Recorders
  • Full two year warrantee

Genlab offer a range of High Temperature Electric Ovens for a variety of applications, with temperatures up to 500°C. This range of High Temperature unit slots inbetween the requirments of a furnace and an oven and are extensively used in the Aerospace Industry.

The unit capacity and temperature range is manufactured to each customer’s individual requirement. Genlab have sold units used in the manufacture of engine components for Vertical Take-Off & Landing (VTOL) Fighter Planes and also for the restoration of vintage Supermarine Spitfires.

Smaller units are constructed from a fully welded Zintec steel outer cabinet with an easy clean powder coated finish. Larger units are constructed from powder coated heavy duty tubular frame fitted with painted panels.

The interior chambers on all sizes are made from high grade, rust proof stainless steel.

All High Temperature units are fitted with high density thermal insulation to minimise heat loss throughout.

All standard 500°C units are fitted with a single front opening, side hinged door and feature an air cooled front fascia.

Each unit is fitted with a microprocessor digital controller with a dual display of set point and actual temperature as standard, with a digital overtemperature policeman to DIN 12-880 class 3.1 fitted as standard.

Alternative controllers and temperature recorders are available on request and all units have fan circulation and are heated by sheathed Incoloy elements around the fan.

Genlab are able to supply the standard units in the following sizes:

HT 64 (64 Litre Capacity)      External 680mm x 890mm  x800mm -     Internal 400mm x 400mm x 400mm
HT 125 (125 Litre Capacity)  External 780mm x 990mm x 900mm -     Internal 500mm x 500mm x 500mm
HT 216 (216 Litre Capacity)  External 880mm x 1090mm x 1000mm - Internal 600mm x 600mm x 600mm

Genlab also manufacture bespoke size High Temperature Ovens & Heat treatment Ovens to meet individual customer requirements.
