Genlab Heavy Duty Ovens

4500 litre oven
HDO/45/250/NPCR
2000 litre oven

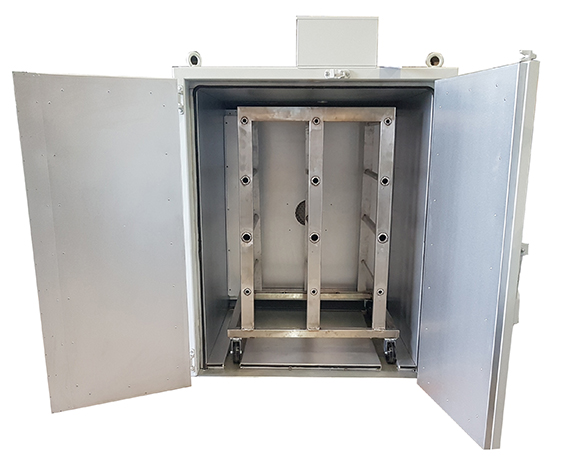

HDO/20

The GENLAB range of Heavy Duty Ovens (HDO) suit most industrial applications for the controlled warming and drying of products. Eleven standard size ovens are available, or bespoke units can be manufactured for a variety os applications that take into consideration all factors such as load, temperature and location. Built around a heavy duty panelled framework, we can offer increased load capability in this range.

A range of custom built shelves and bespoke trolley and racking systems are available to suit all units and applications

Features

  • 11 sizes 1,000 to 20,000 litre capacity
  • Temperature range 50 to 150ºC
  • Flat sheet steel floor with chamfered edges for easy loading / access
  • Dual door with heavy duty 2 point locking mechanism
  • Internal safety release lock
  • Manual overheat reset
  • High velocity fan assisted circulation
  • Excellent stabilty <+/- 0.8ºC
  • Low chamber uniformity

Options

  • 250ºC continuous operation (insulated floor only)
  • Stainless steel chamber
  • Profile/cascade controllers
  • Process recorders with ethernet and USB output
  • Count down timers
  • Explosion relief panels
  • Access ports (25m 50, 75 or 100mm)
  • Traceable calibrations to national standards
  • Heavy duty shelving / trolleys
  • Extractor unit/bifurcated fans
  • Bespoke solutions available upon request

Design

Genlab HDO units are constructed from a powder coated heavy duty framework which is fitted with powder coated panels and have a minimum of 65mm high density insulation

The interior chamber is made from mild steel coated with aluminium, with stainless steel chambers available as an option. All units have fan circulation in the top of the oven, however, exterior designs can be changed for rear mounted circulation if preferred

Heating

Units are heated by Incoloy sheathed elements positioned in the roof of the oven, and have high speed fans for high velocity air circulation. Heated air is forced down internal side walls of the oven for optimum uniformity conditions.

Controls

An external control panel is mounted on the right hand side of the oven (left upon request). They are populated with market leading controllers from Eurotherm and have premium switchgear for longevity and reliable operation. Each oven has an independent overheat protection and fan motor protection, both requiring manual reset to ensure safe operation.

Specifications

Flat sheet floor rate to 150ºC
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
Wattage/
Voltages
Fans
(No x size)
Weight
(kg)
HDO/10
1000
100 x 100 x 100
152 x 175 x 128
9000/415
1 x 0.55
700
HDO/15
1500
150 x 100 x 100
202 x 175 x 128
12000/415
1 x 0.55
750
HDO/20
2000
200 x 100 x 100
252 x 175 x 128
12000/415
2 x 0.55
850
HDO/25
2500
150 x 140 x 120
202 x 215 x 148
15000/415
2 x 0.55
950
HDO/30
3000
150 x 130 x 150
202 x 205 x 178
18000/415
2 x 0.55
1150
HDO/45
4500
180 x 160 x 155
232 x 235 x 183
18000/415
2 x 1.5
1300
HDO/60
6000
200 x 200 x 150
252 x 275 x 178
24000/415
4 x 0.55
1450
HDO/80
8000
200 x 200 x 200
252 x 275 x 228
30000/415
4 x 0.55
1550
HDO/100
10000
250 x 200 x 200
302 x 275 x 228
36000/415
4 x 1.5
1600
HDO/150
15000
250 x 300 x 200
302 x 375 x 228
48000/415
6 x 1.5
1900
HDO/200
20000
250 x 300 x 265
302 x 375 x 293
60000/415
6 x 1.5
2200

Insulated floor rated to 250ºC
Genlab ref.
Number
Capacity
(litres)
Internal dims.
(H x W x D cms)
External dims.
(H x W x D cms)
Wattage/
Voltages
Fans
(No x size)
Weight
(kg)
HDO/10/250
1000
100 x 100 x 100
168 x 175 x 128
9000/415
1 x 0.55
750
HDO/15/250
1500
150 x 100 x 100
218 x 175 x 128
12000/415 1 x 0.55
800
HDO/20/250
2000
200 x 100 x 100
268 x 175 x 128
15000/415
2 x 0.55
900
HDO/25/250
2500
150 x 140 x 120
218 x 215 x 148
18000/415
2 x 0.55
1000
HDO/30/250
3000
150 x 130 x 150
218 x 205 x 178
18000/415
2 x 0.55
1200
HDO/45/250
4500
180 x 160 x 155
248 x 235 x 183
24000/415
2 x 1.5
1350
HDO/60/250
6000
200 x 200 x 150
268 x 275 x 178
30000/415
4 x 0.55
1500
HDO/80/250
8000
200 x 200 x 200
268 x 275 x 228
36000/415
4 x 0.55
1600
HDO/100/250
10000
250 x 200 x 200
318 x 275 x 228
36000/415
4 x 1.5
1650
HDO/150/250
15000
250 x 300 x 200
318 x 375 x 228
48000/415
6 x 1.5
1950
HDO/200/250
20000
250 x 300 x 265
318 x 375 x 293
60000/415
6 x 1.5
2250

Ordering

All units have CLAD interior with an external control panel mounted on the right hand side. Units rated above 150ºC will come with an insulated raised floor and additional cooling around the framework.

Where options are required simply add the option code to the original reference.

E.g. HDO/10/250 with insulated track floor and recorder becomes HDO/10/250/TR/NCR.

Contact sales for bespoke options.

Option codes

Stainless Steel Chamber - SS
Insulated Track Floor - TR
3 Point Calibration - 3PC
9 Point Temperature Uniformity Survey - 9PC
Explosion Relief Panels - EXP
Extraction Systems - BIEXT
Count Down Timer - TDT
Real Time Clock - RTC
Profile Control - 3016CP
10 Stage Profile Control - 3016CP10
Recorder - NCR
Recorder with Multi Profile - NPCR
25mm Access Port - AP
50mm Access Port - AP50
75mm Access Port - AP75
100mm Access Port - AP100
Door Contact - DC
