Combined Fluid and Blanket Warming Cabinets
CFWC115BCW215
CFWC115BCW215
Genlab's range of Fluid Warming, Blanket Warming, and Combination Warming Cabinets has been developed to provide safe, reliable temperature control for today's demanding healthcare environments. Designed for continuous 24/7 operation, every cabinet combines precise temperature control, exceptional energy efficiency and robust construction to ensure warmed fluids and blankets are always available when required.
Ideal for use in:
- Operating Theatres
- Recovery & Post Anaesthesia Care Units
- Accident & Emergency Departments
- Critical Care & Intensive Care Units
- Maternity & Birth Centres
- Neonatal & Postnatal Wards
- Day Surgery Units
- Clinical Treatment Areas
Fluid Warming Cabinets
Genlab Fluid Warming Cabinets are factory calibrated to maintain fluids at the recommended 37°C, ensuring products are ready for immediate clinical use while helping maintain patient comfort. Cabinets can also be adjusted up to 60°C where specific applications require alternative storage temperatures.
A highly reflective 304 hospital-grade stainless steel chamber provides excellent heat distribution, delivering outstanding temperature uniformity and helping fluids remain at the correct temperature throughout storage.
Blanket Warming Cabinets
Designed specifically for warming blankets safely, Genlab Blanket Warming Cabinets feature an innovative indirect heating system that keeps heating elements completely outside the storage chamber.
This unique design prevents blanket fibres from coming into contact with heating elements, significantly improving operational safety while providing gentle, even heat up to 80°C.

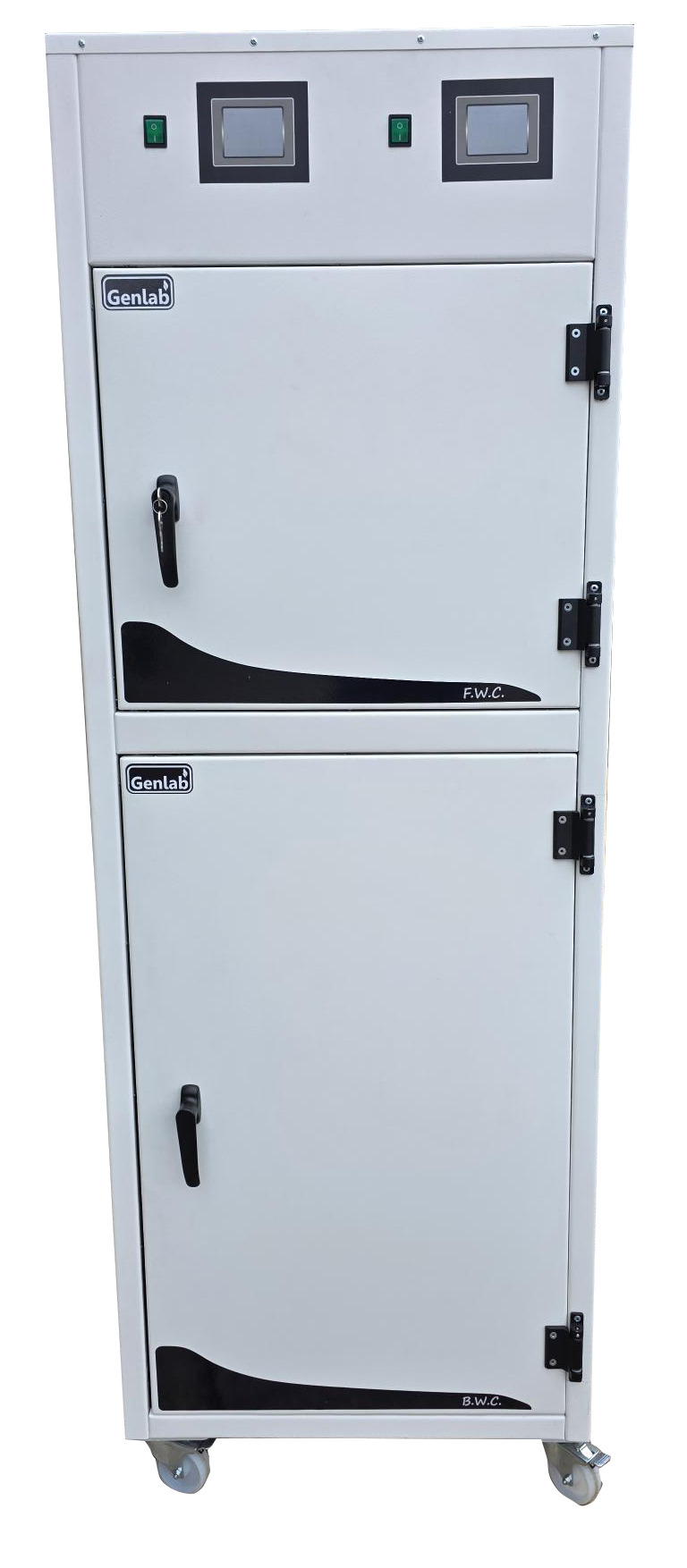

Combination Blanket & Fluid Warmers
Where space is at a premium, Genlab Combination Cabinets provide the perfect solution.
Separate independently controlled chambers allow blankets and fluids to be stored simultaneously at different temperatures within a single compact cabinet, maximising valuable clinical space without compromising performance.
Features
- Available in 7 capacities from 55 to 365 litres
- Factory Calibrated for clinical use
- Manual or automatic overheat reset
- High accuracy Pt100A duplex sensors <0.4 °C
- Integral 48 hour on screen temperature trending
- Tamper Proof controller settings
- Energy efficient with integral energy meter
- Castor wheels above 200L
Constructionn
Built for Healthcare
Exterior
Heavy-duty steel construction with a durable, easy-clean powder-coated finish, designed for demanding hospital environments.
Interior
Mirror-polished 304 hospital-grade stainless steel chamber with fixed shelf runners and removable chrome-plated shelves for easy cleaning and infection control
Intelligent Temperature Controls
Every Genlab cabinet incorporates an advanced control system featuring:
- Dual Class A PT100 temperature sensors
- Independent over-temperature safety protection
- Manual or automatic overheat reset
- 48-hour graphical temperature history
- Optional temperature data export for compliance and record keeping
.
Specifications
|
Natural Convection
|
|||||||
| Genlab ref. Number |
Capacity
(litres) |
Internal dims.
(H x W x D cms) |
External dims.
(H x W x D cms) |
Shelves
|
Wattage
|
Voltage |
Weight
(kg) |
| FWC65/TDIG | 55 |
25 X 51 X 50
|
60 x 63 x 65 | 1 | 500 | 230 | 40 |
| FWC115/TDIG | 115 | 45 X 51 X 50 | 80 x 63 x 65 | 2 | 750 | 230 | 70 |
| FWC165/TDIG | 165 | 65 X 51 X 50 | 100 x 63 x 65 | 3 | 750 | 230 | 80 |
| FWC215/TDIG | 215 | 85 X 51 X 50 | 127 x 63 x 65 | 4 |
1000
|
230
|
100 |
| BWC55/TDIG | 55 | 25 X 51 X 50 | 60 x 63 x 65 | 1 | 500 | 230 | 40 |
| BWC115/TDIG | 115 | 45 X 51 X 50 | 80 x 63 x 65 | 2 | 750 | 230 | 70 |
| BWC165/TDIG |
165
|
65 X 51 X 50
|
100 x 63 x 65
|
3
|
750
|
230
|
80
|
| BWC215/TDIG | 215 | 85 X 51 X 50 | 127 x 63 x 65 | 4 | 1000 | 230 | 100 |
| BWC265/TDIG | 265 | 105 X 51 X 50 | 147 x 63 x 65 | 5 | 1500 | 230 | 120 |
| BWC315/TDIG | 315 | 125 X 51 X 50 | 167 x 63 x 65 | 6 | 1500 | 230 | 130 |
| BWC365/TDIG |
365
|
145 X 51 X 50
|
187 x 63 x 65
|
7
|
2000
|
230
|
140
|
| CFW55/BWC55/TDIG |
110
|
see above |
95 x 63 x 65
|
2
|
1000
|
230
|
90
|
| CFW55/BWC115/TDIG | 170 | see above | 115 x 63 x 65 | 3 | 1250 | 230 | 120 |
| CFW55/BWC165/TDIG | 220 | see above | 142 x 63 x 65 | 4 | 1250 | 230 | 130 |
| CFW55/BWC215/TDIG | 270 | see above | 162 x 63 x 65 | 5 | 1500 | 230 | 145 |
| CFW55/BWC265/TDIG | 320 | see above | 182 x 63 x 65 | 6 | 2000 | 230 | 155 |
| CFW115/BWC115/TDIG | 230 | see above | 142 x 63 x 65 | 4 | 1500 | 230 | 145 |
| CFW115/BWC165/TDIG | 280 | see above | 162 x 63 x 65 | 5 | 1500 | 230 | 155 |
| CFW115/BWC215/TDIG | 330 | see above | 185 x 63 x 65 | 6 | 1750 | 230 | 165 |
Designed Around Patient Care
Genlab Blanket and Fluid Warming Cabinets combine precision engineering, outstanding temperature performance and proven reliability to help healthcare professionals deliver the highest standards of patient care while meeting the demands of modern clinical environments.
Optional Feature
- Integral Temperature Logger (ITL)
- Viewing Window (VIS)
- Audible Warning Alarm (AWA)
- 25mm Access Ports – (AP)
- Mechanical Door Lock
- Fan Speed Control (50–100%) (FSC)
- Single Point Traceable Calibration (SPC)
- Extended Warranty
- Bespoke Designs for Specialist Applications
- Castor Wheels (CW) Included as standard above 200
